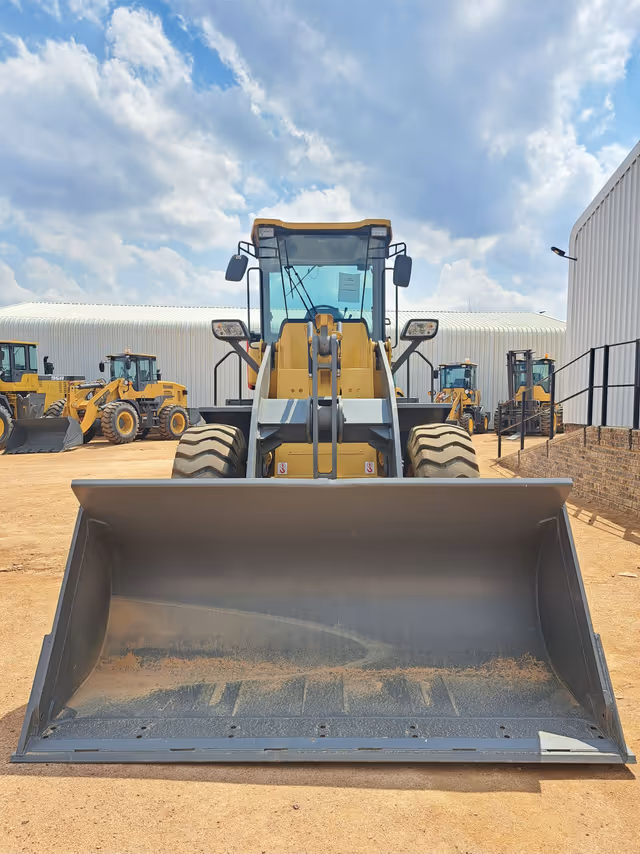

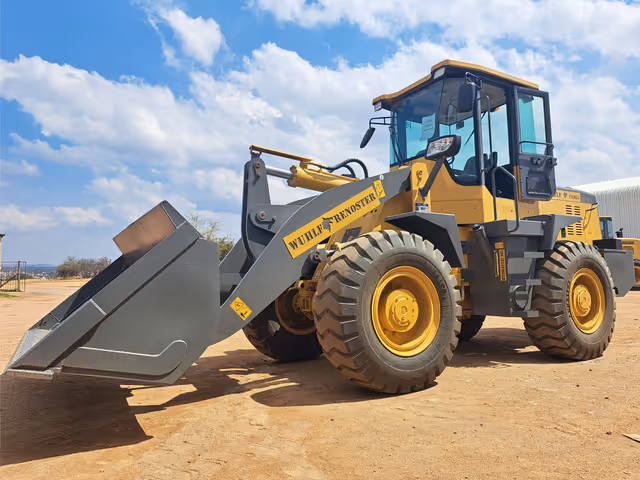

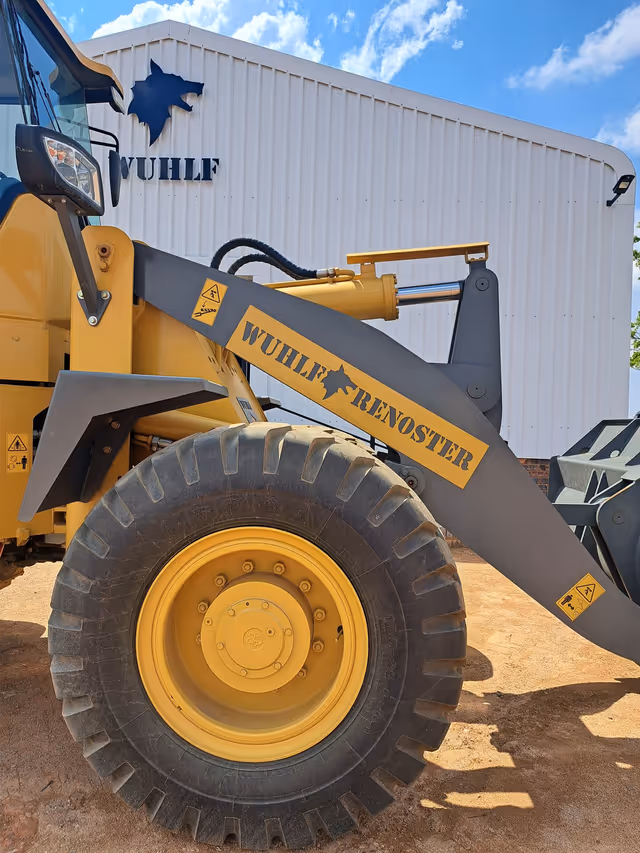

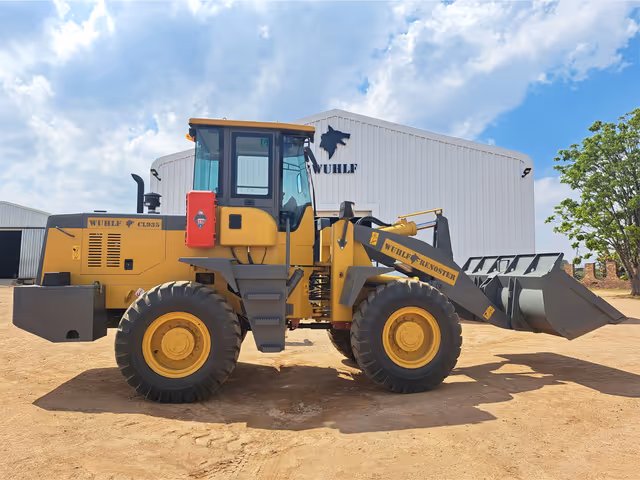

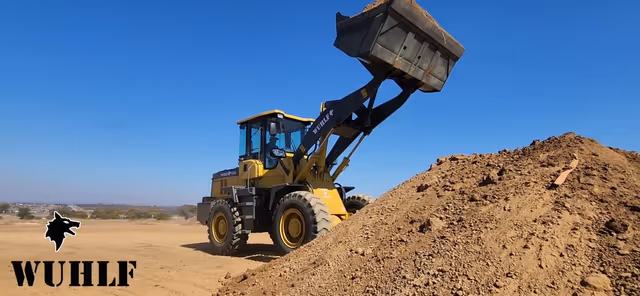

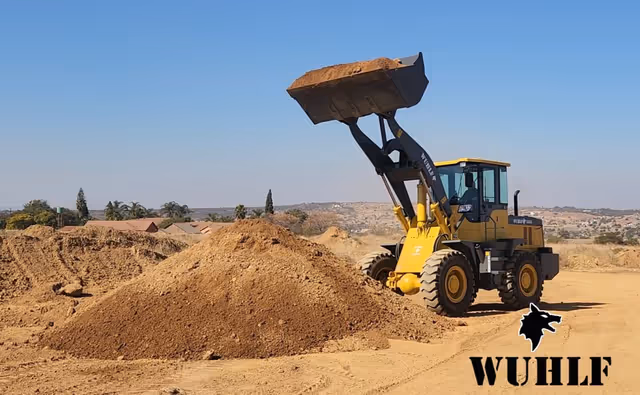

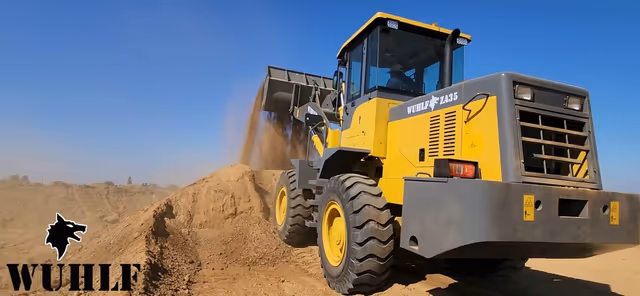

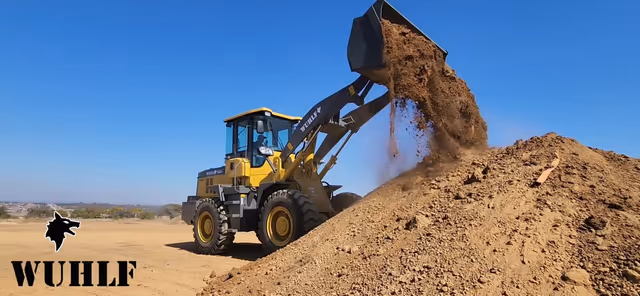

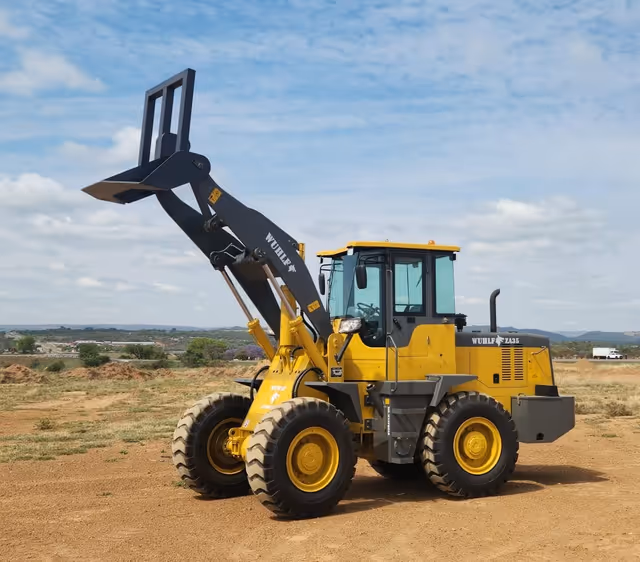

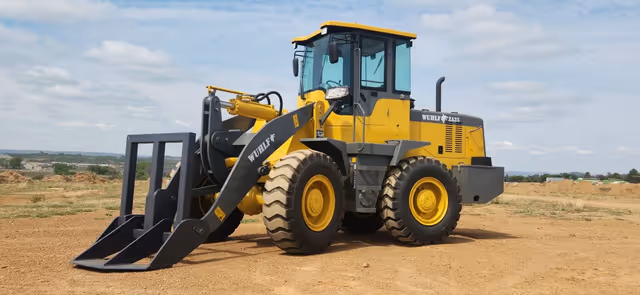

ZA35 Renoster
3 Ton Front End Loader
Dimensions
Overall Length
6 980mm
Overall Width
2 300mm
Overall Height
3 080mm
Wheel Base
2 600mm
Min Ground Clearance
470mm
Max Dumping Clearance
3 150mm
Max Dumping Height
3 800mm
Dumping Reach
1 440mm
Specifications
Operating Weight
9800kg
Bucket Capacity
1.7m³
Raising Time
5.4s
Bucket Width
2 440mm
Rated Load
3 Ton
Max Climbing Gradient
30°
Min Turn Radius
5 900mm
Traveling Speed
1st Gear
0 - 8 km/h
2nd Gear
0 - 15.5 km/h
3rd Gear
0 - 25 km/h
4th Gear
0 - 36 km/h
Reverse 1st Gear
0 - 10 km/h
Reverse 2nd Gear
0 - 27 km/h

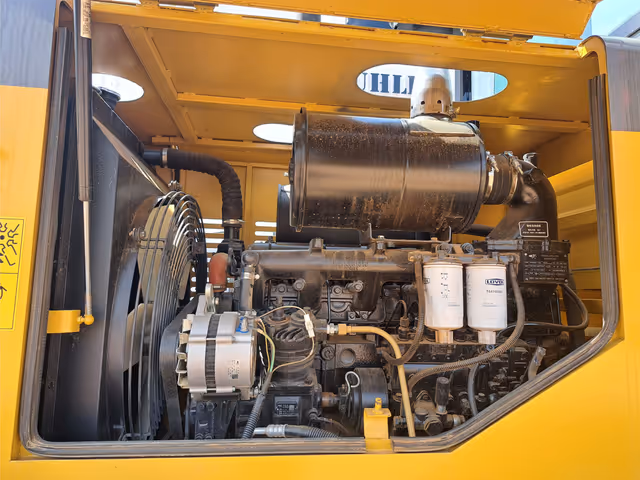

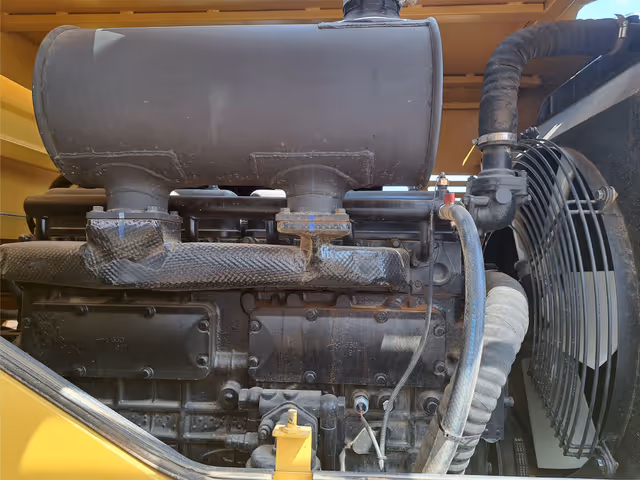

Engine
Rated Power
92kW
Rated Speed
2 200rpm
Model
YC6108G
Tyres

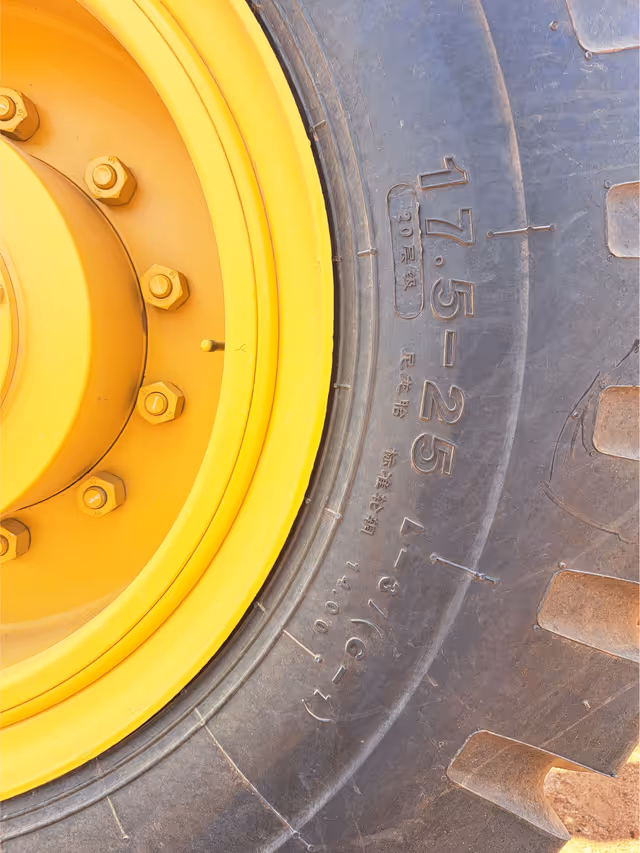

Standard Tyre Size
17.5-25
Front Pressure
0.343mpa
Rear Pressure
0.294mpa
Tank Capacities

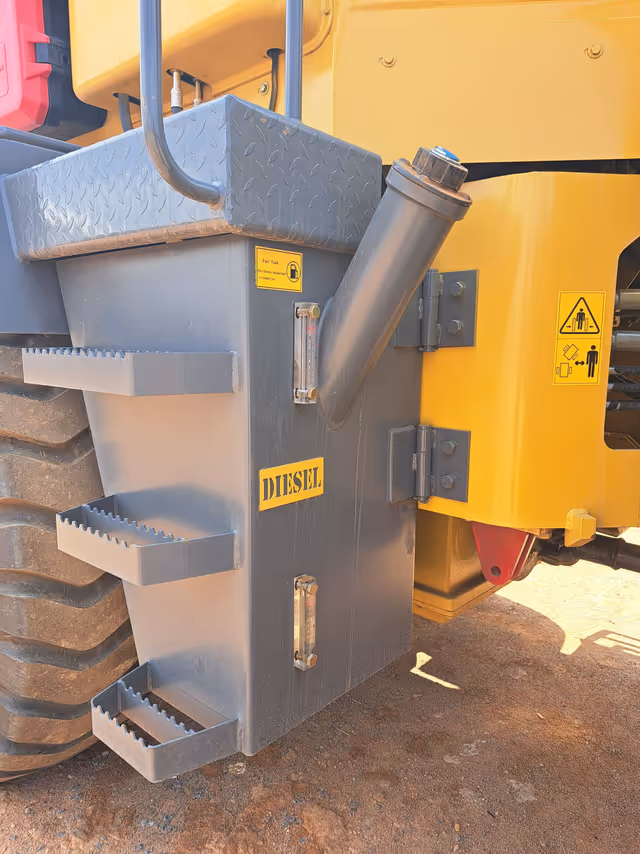

Fuel Tank
130 L

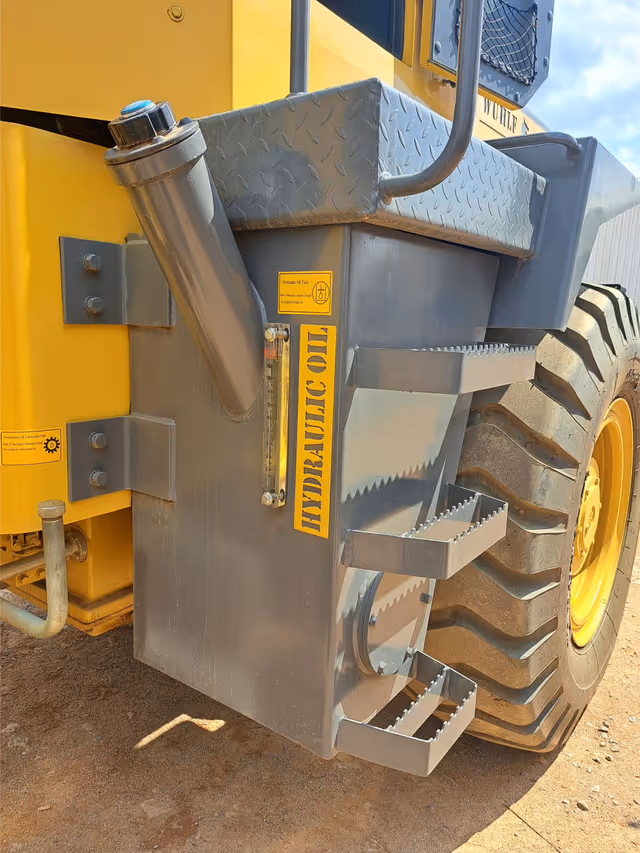

Hydraulic Oil Tank
115 L
Engine Oil
20 L
Gear Box
45 L
Axle and Final Reducer
28 L
Brake System
4 L
Axle and Main Transmission
Type
Single Stage
Reducer Ratio
5.286
Final Reducer
Single Stage Planetary
Transmission
Type
Power Shift Transmission
Torque Coefficient
3.23
Main Valve Pressure Starts
1.20 - 1.40mpa
Flow Valve Pressure Starts
0.50 - 0.60mpa
Flux
82 L/min
Articulation
Type
Full Hydraulic Articulated Frame Steering
Steering Angle
35°

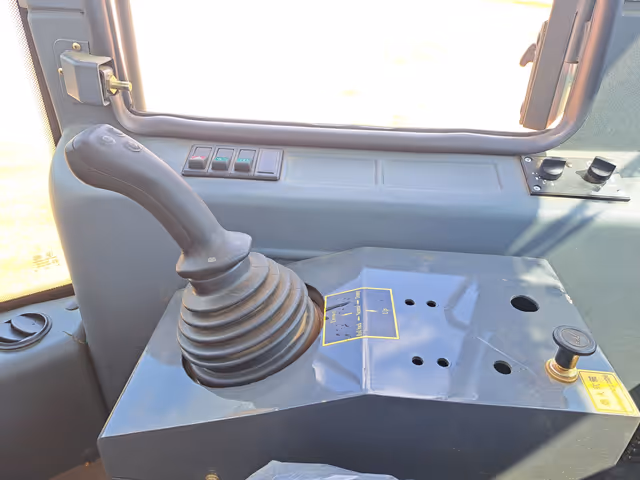

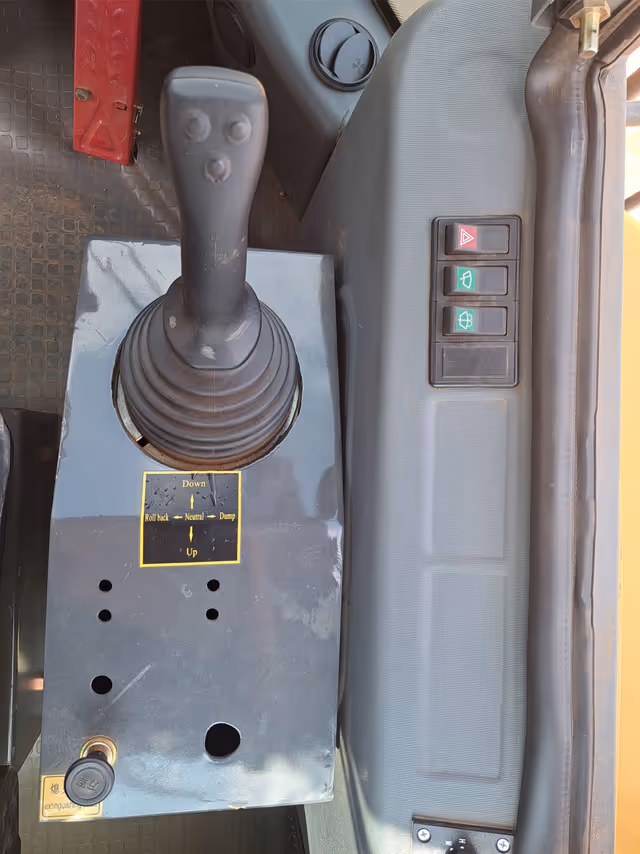

Working Hydraulics
System Type
Open Mode Controlling
Working System Pressure
16mpa
Bucket Delivery Time
1.1s
Brake System
Brake Pressure
0.45 - 0.68mpa
Foot Brake Type
Air Assisted
