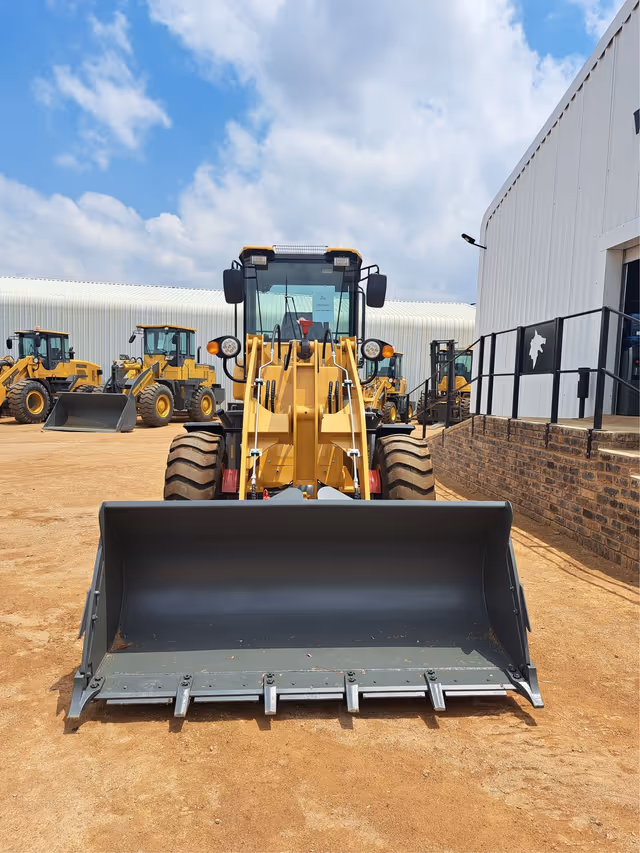

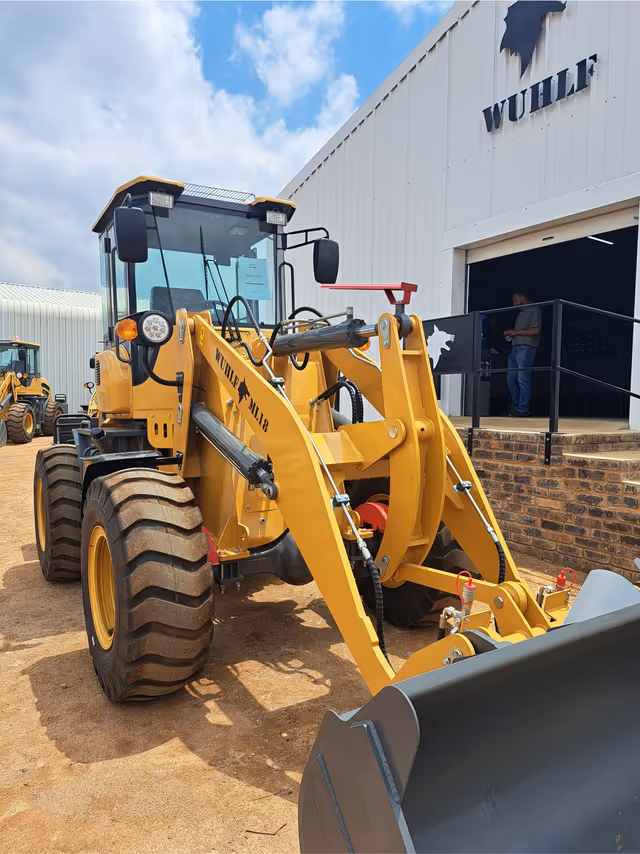

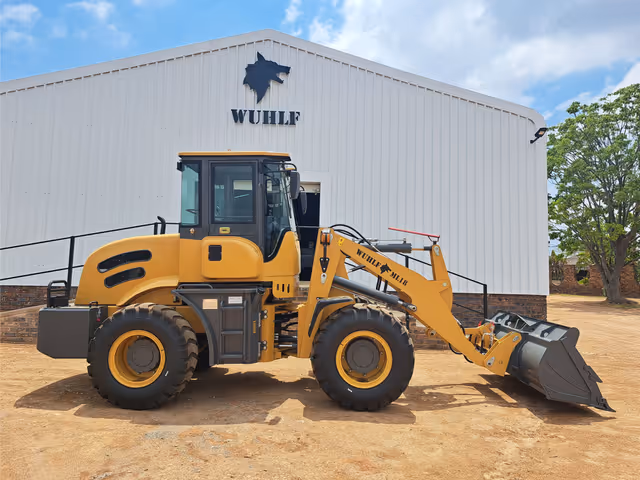

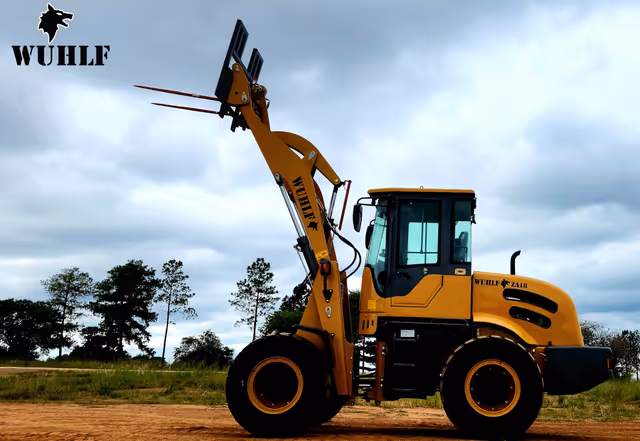

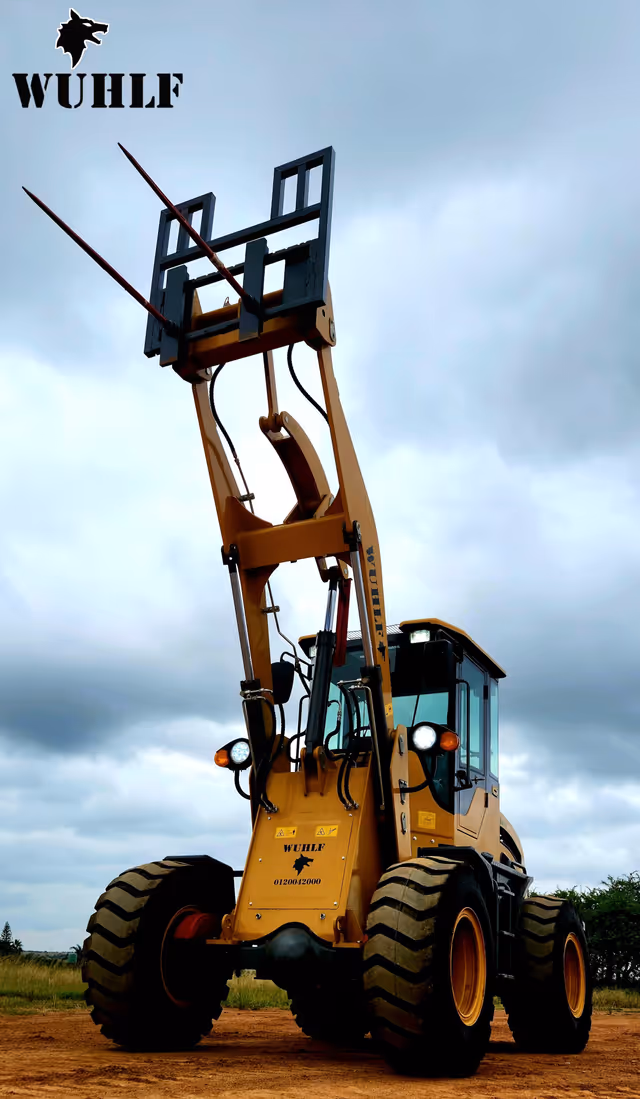

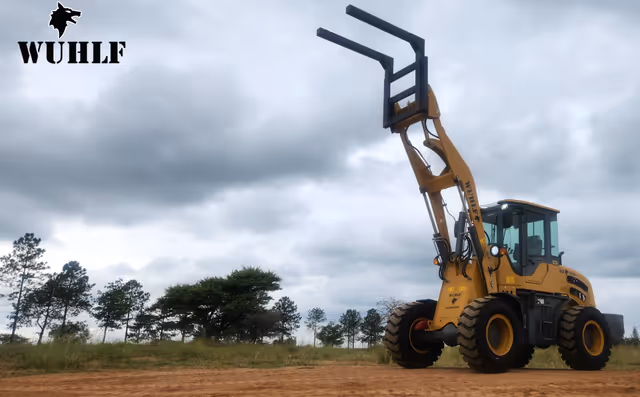

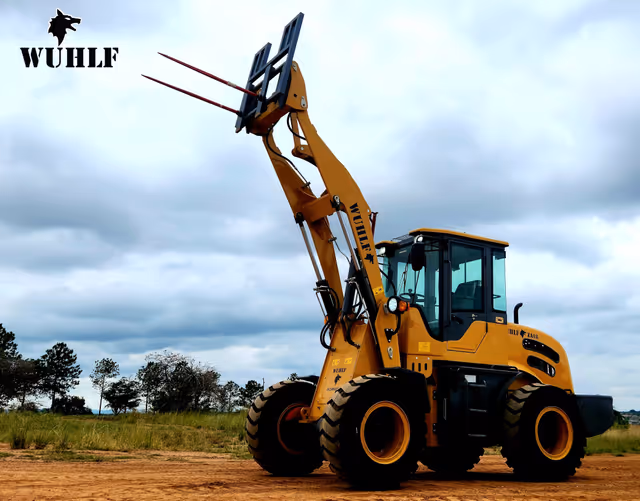

ZA18
1.8 Ton Front End Loader
Dimensions
Overall Length
5 840mm
Overall Width
1 900mm
Overall Height
2 700mm
Wheel Base
2 300mm
Min Ground Clearance
355mm
Max Dumping Clearance
3 220mm
Max Dumping Height
3 775mm
Dumping Reach
1 000mm
Operating Weight
4 370kg
Specifications
Rated Load
1.8 Ton
Bucket Capacity
0.9m³
Max Climbing Gradient
30°
Min Turn Radius
4 000mm
Traveling Speed
Low Gear
0 - 10 km/h
High Gear
0 - 20 km/h
Reverse Low
0 - 10 km/h
Reverse High
0 - 20 km/h

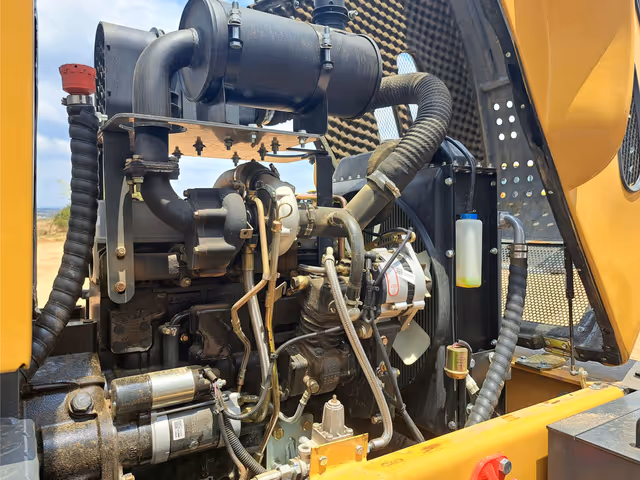

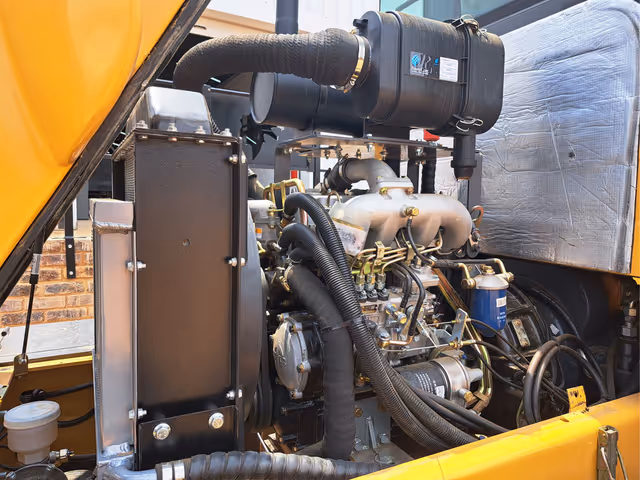

Engine
Type
4cyl Diesel
Rated Power
70kW
Rated Speed
2 400rpm
Model
Changchai 4G33
Tyres
Standard Size

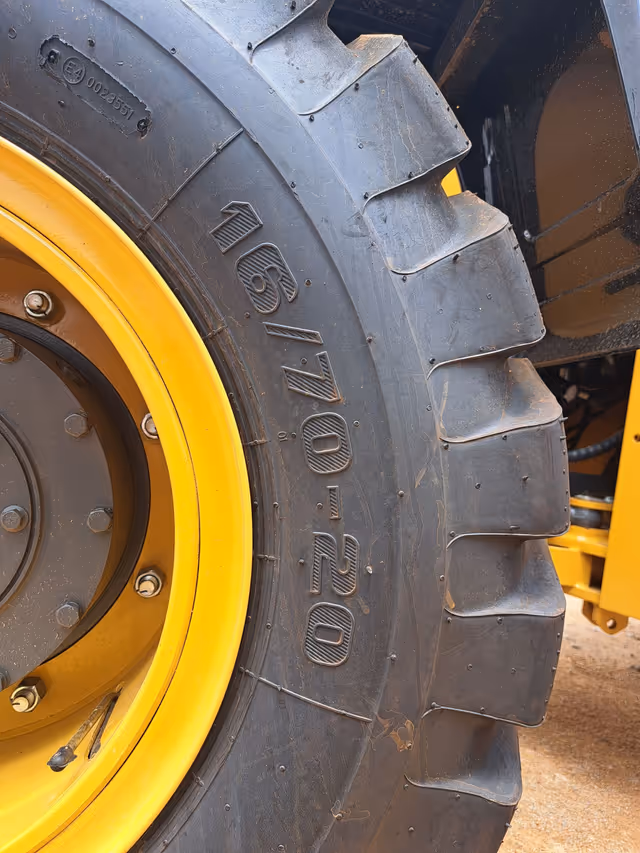

16/70-20
Front Pressure
0.343mpa
Rear Pressure
0.294mpa
Tank Capacities
Fuel Tank
85 L
Hydraulic Oil Tank
85 L
Engine Oil
15 L
Gearbox
8 L
Axle and Final Reducer
15 L
Brake System
4 L
Transmission
Type
Power Shift ZL10
Articulation
Type
Full Hydraulic Articulated Frame Steering
Steering Angle
35°
Working Hydraulics
System Type
Open Mode Controlling
Working System Pressure
16mpa
Bucket Delivery Time
1.1s
Brake System
Brake Pressure
0.45 - 0.68mpa
Foot Brake Type
Air Assisted
