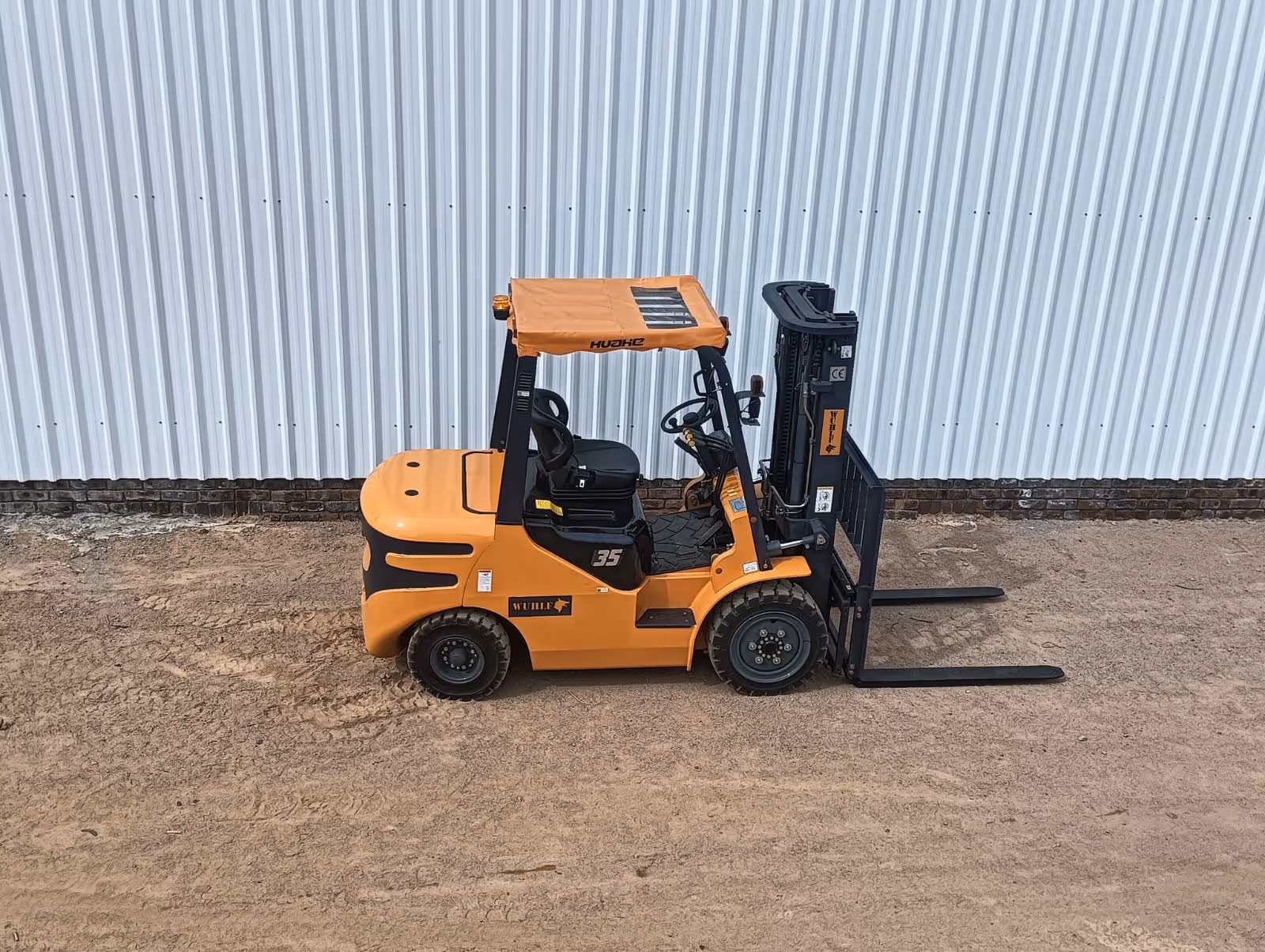

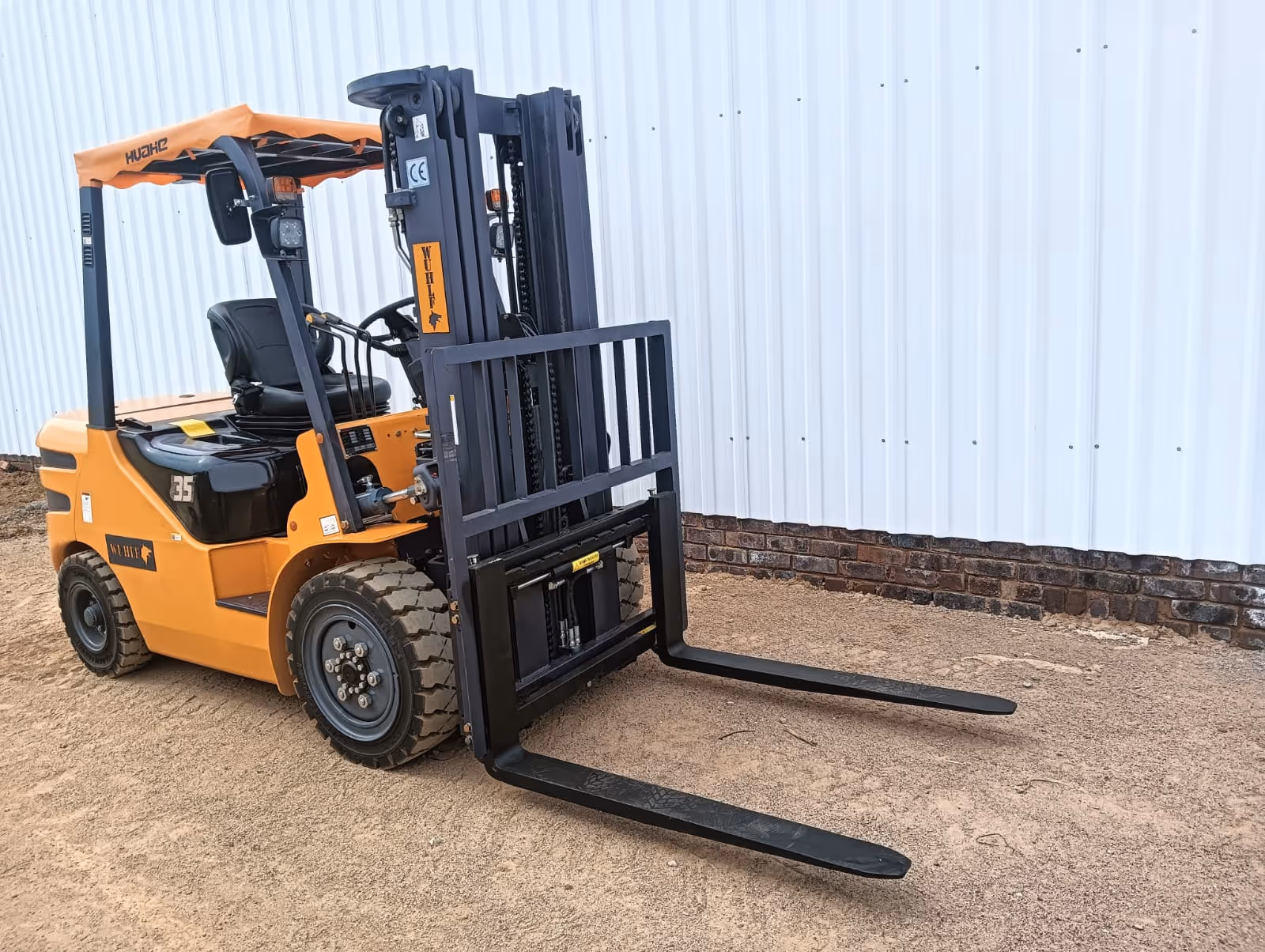

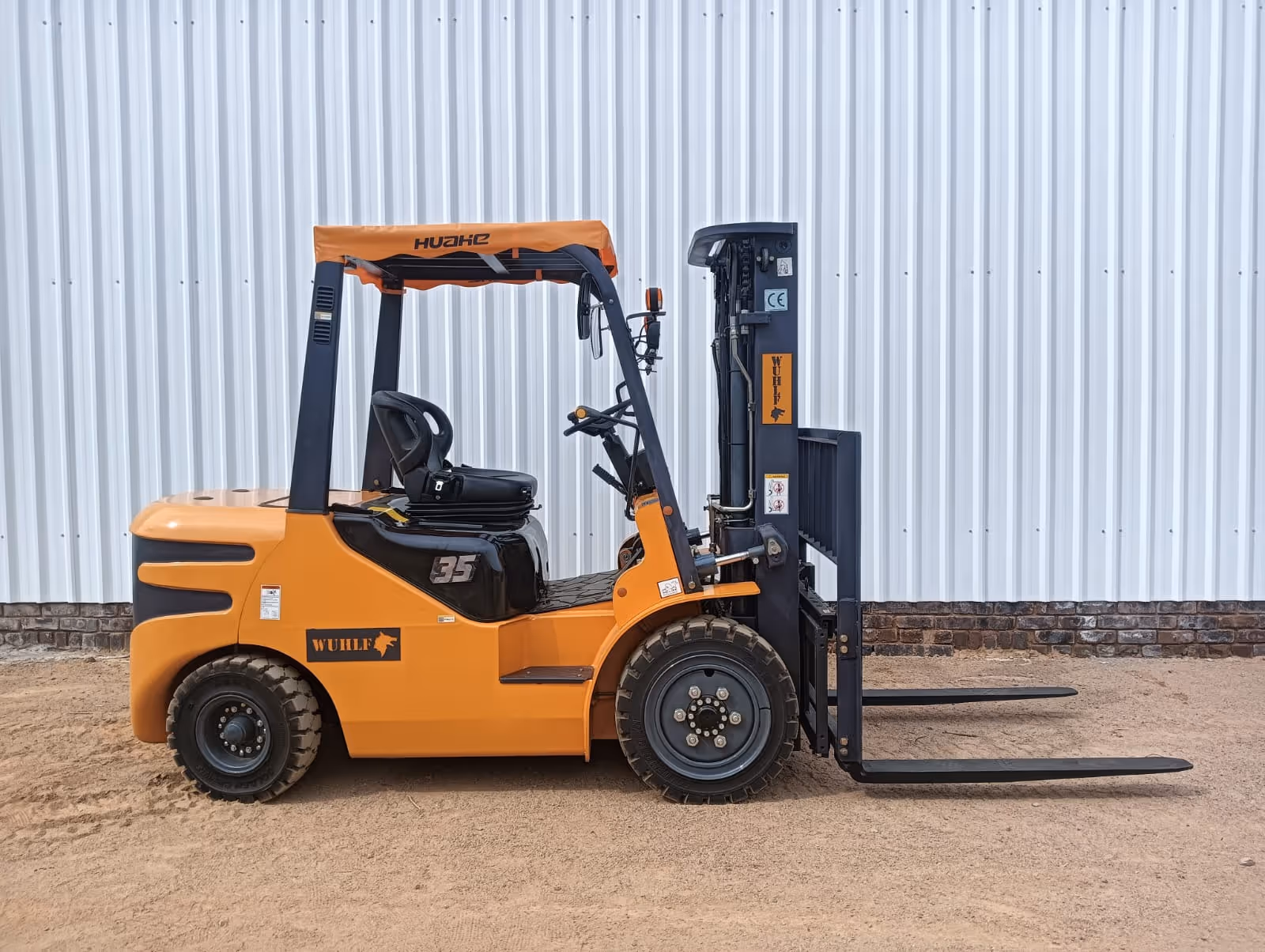

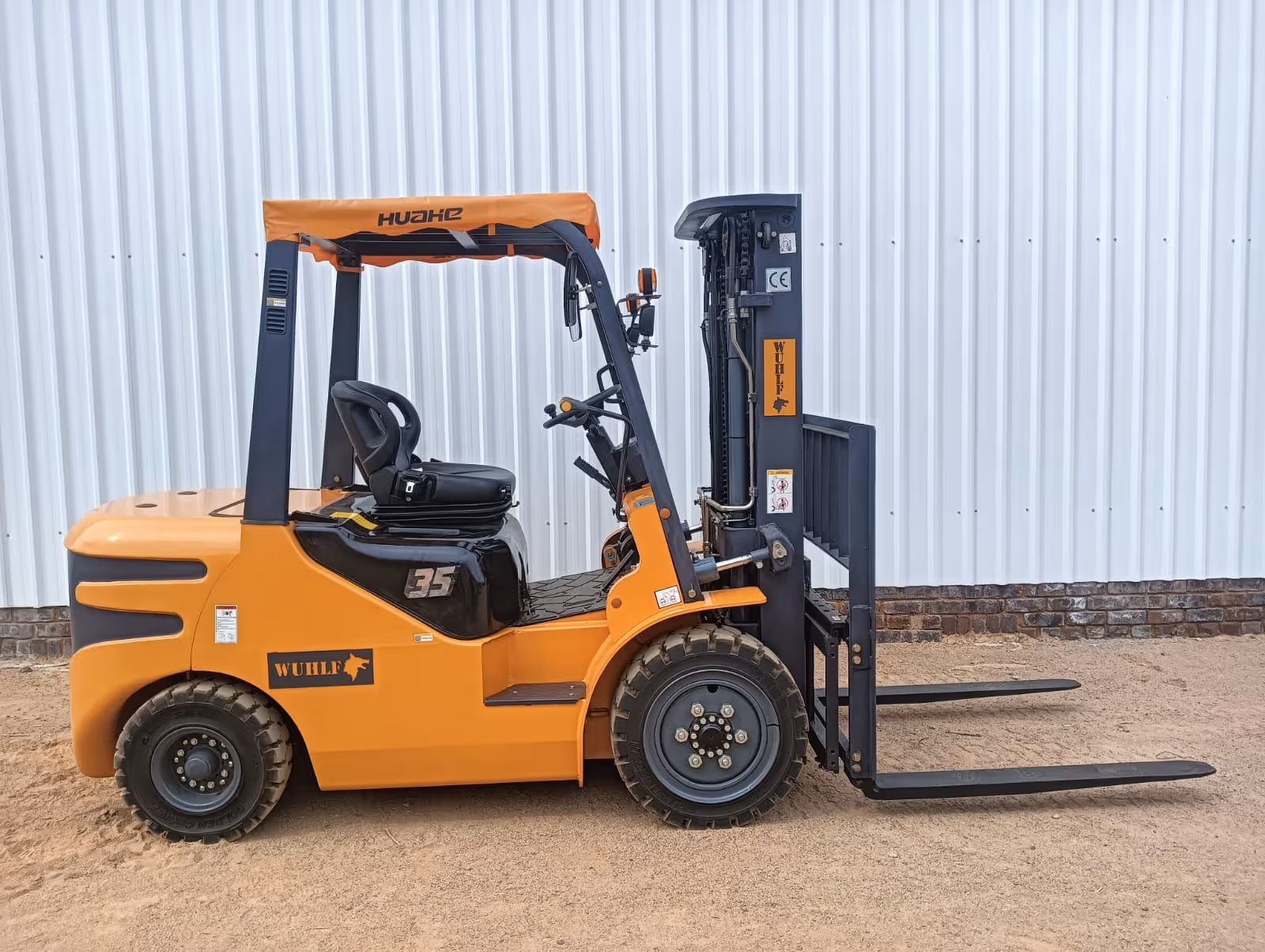

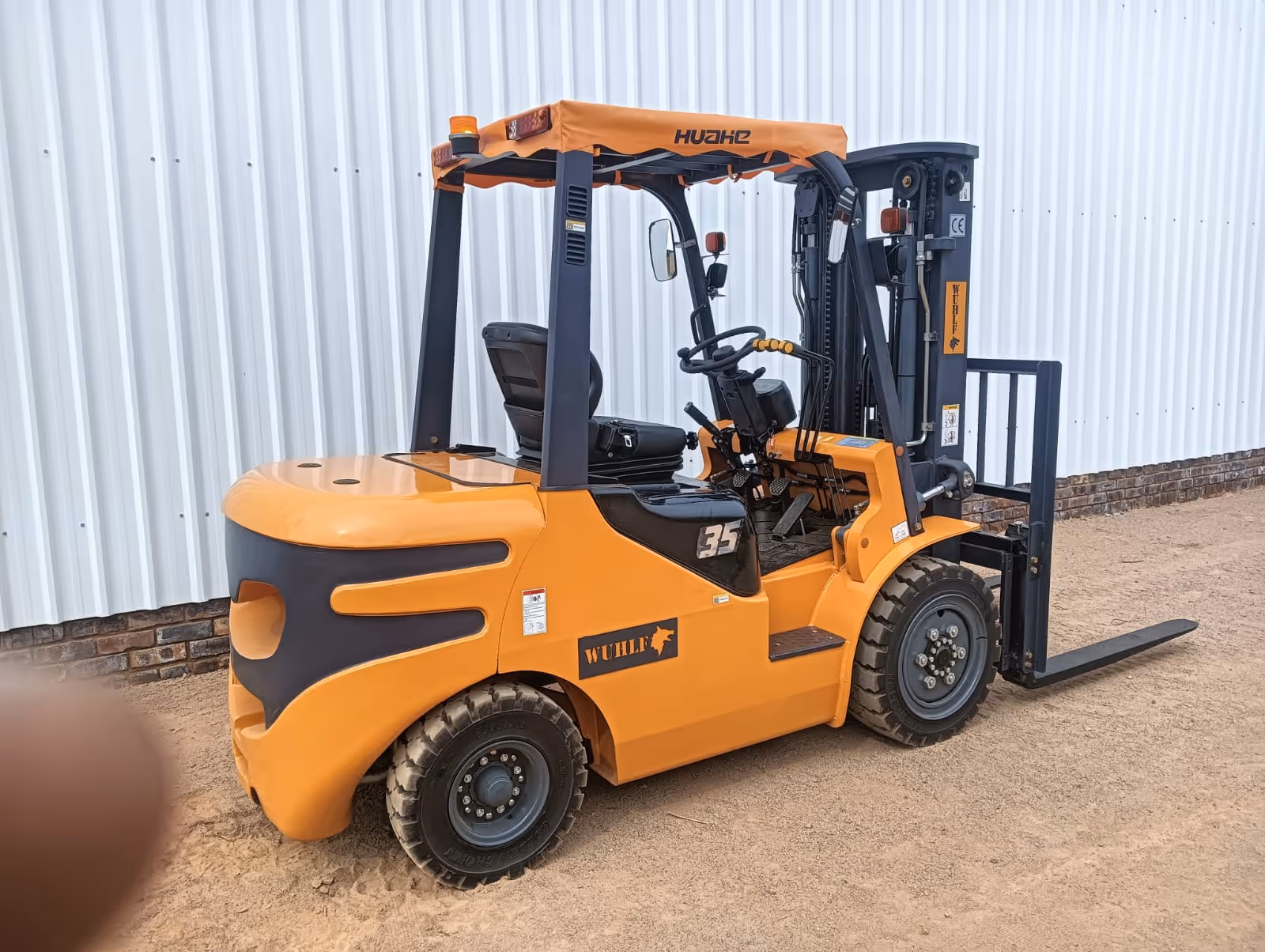

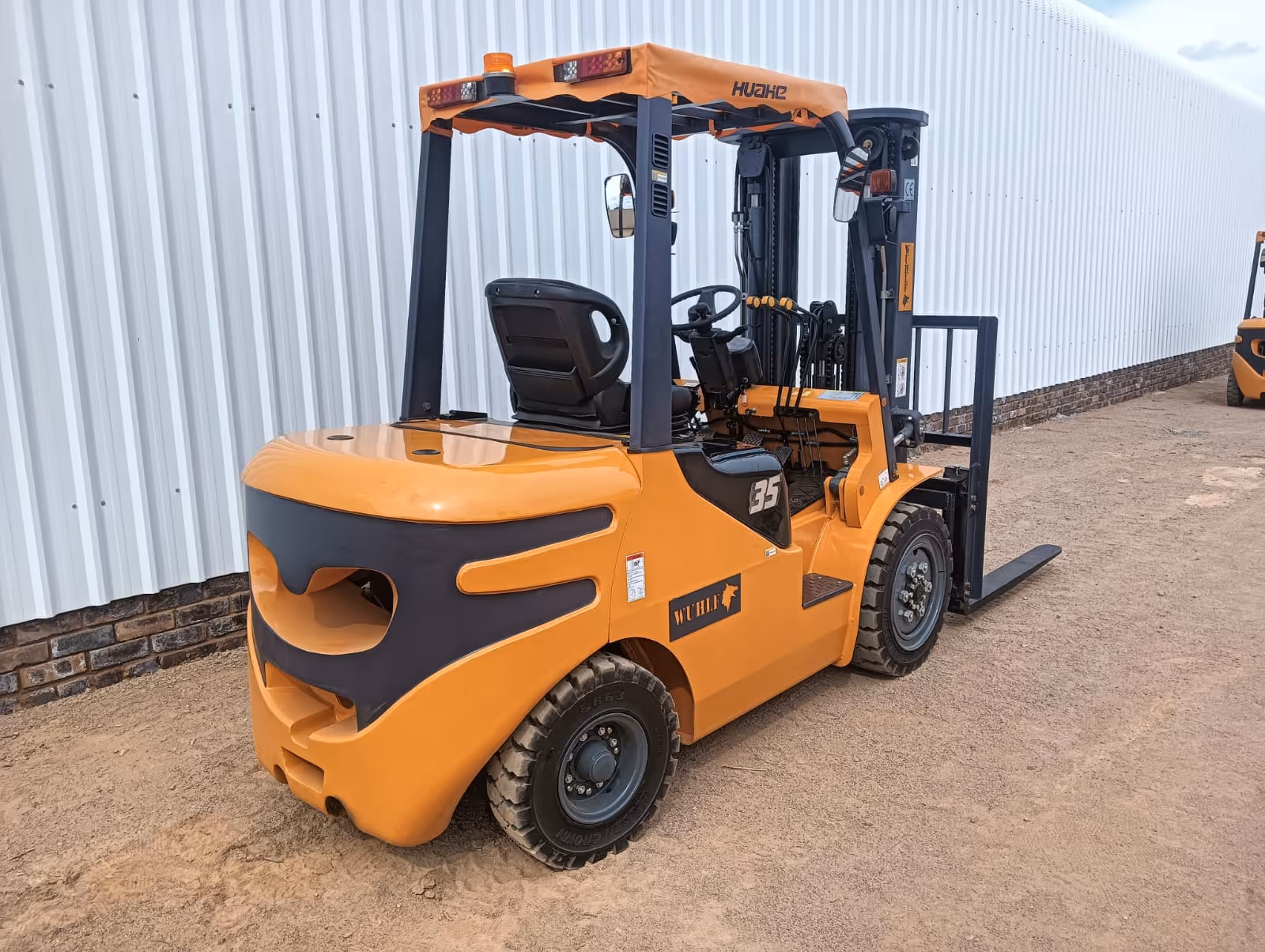

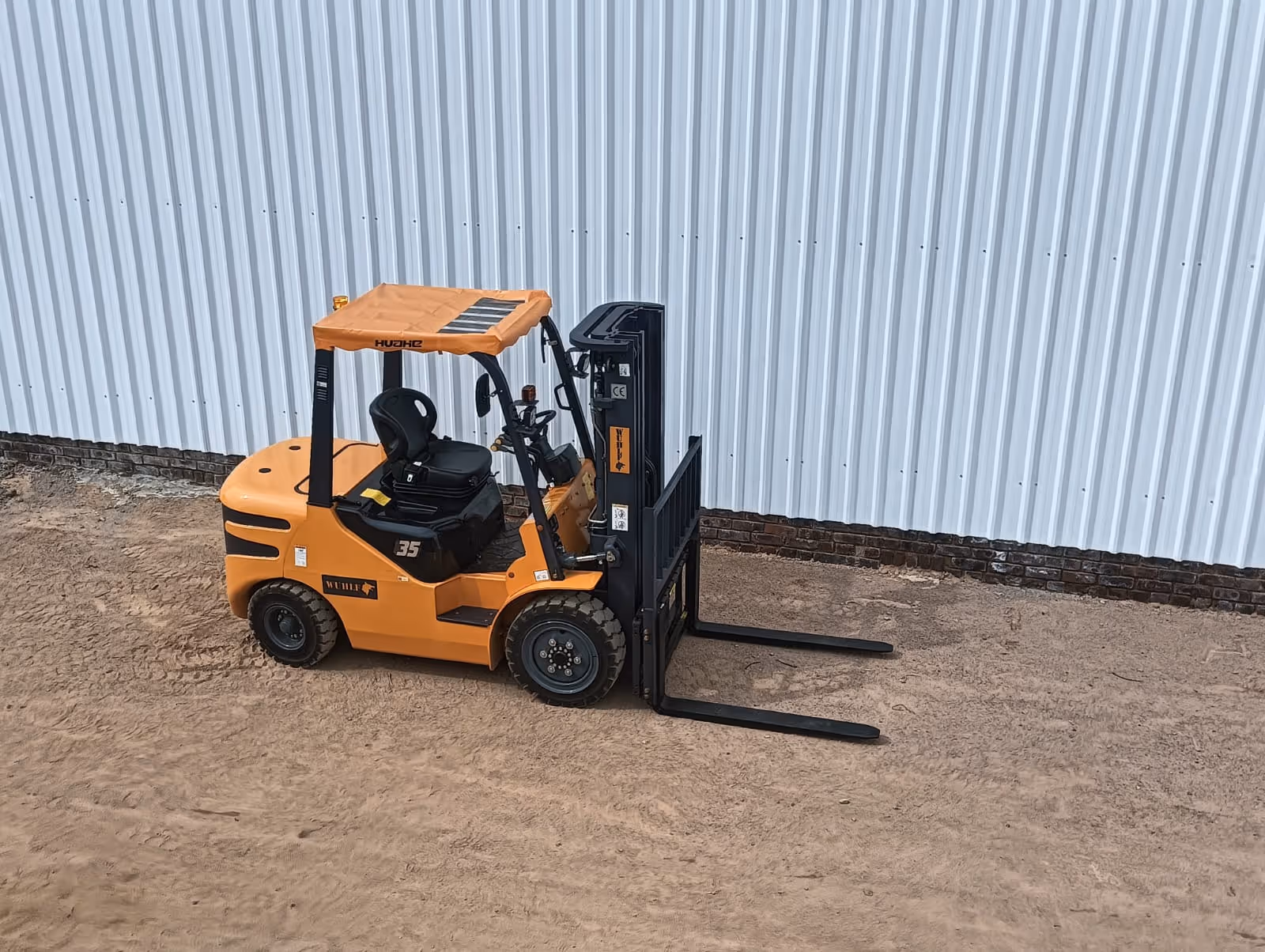

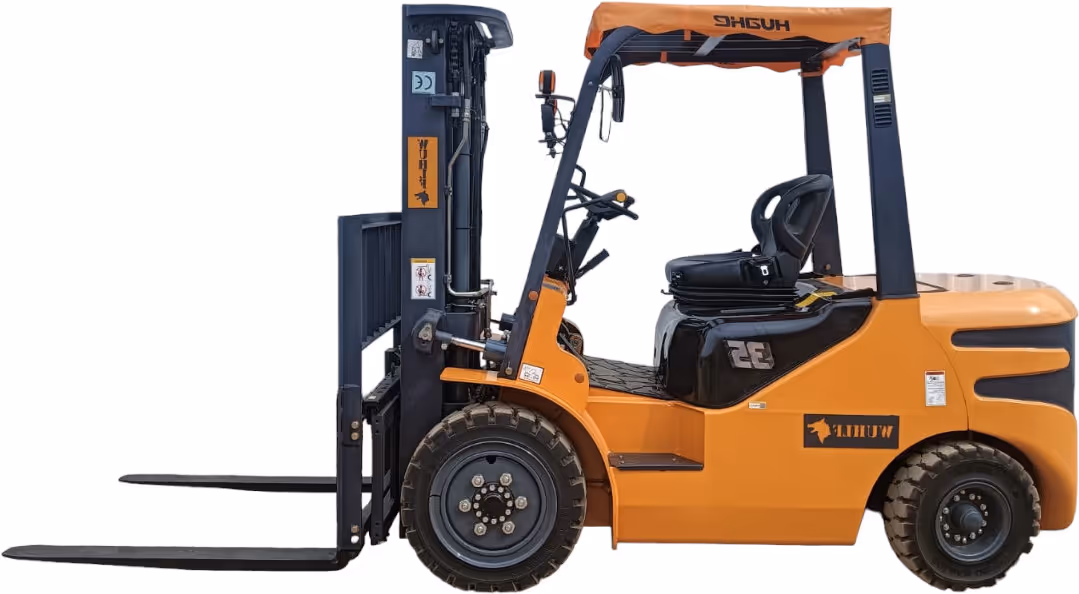

3.5T Wuhlf Forklift

3.5 Ton with 4.5 Meter Mast, Sideshift and Solid Tyres

Dimensions

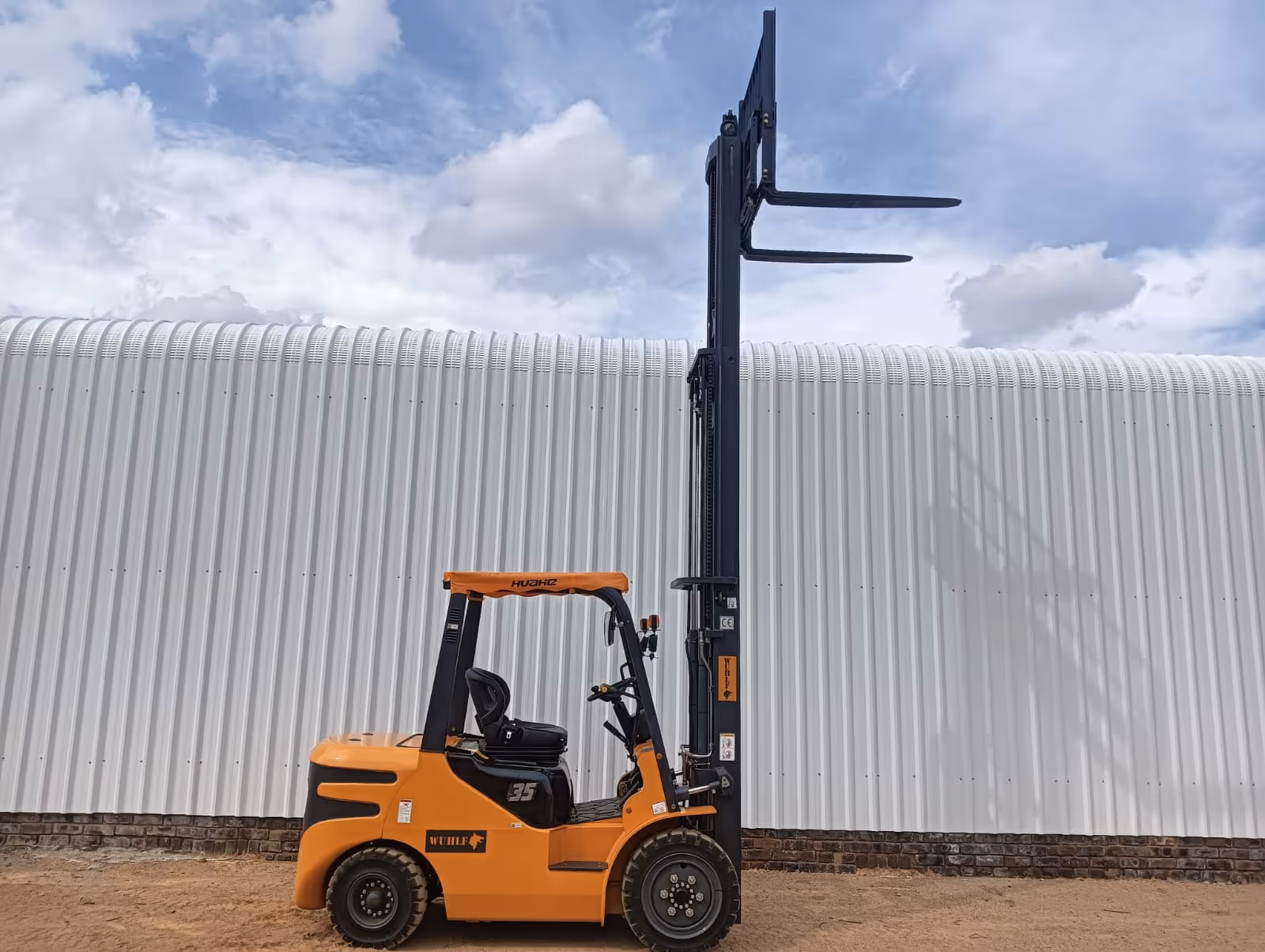

Max Lifting Height
4 500mm
Free Lift Height
110mm

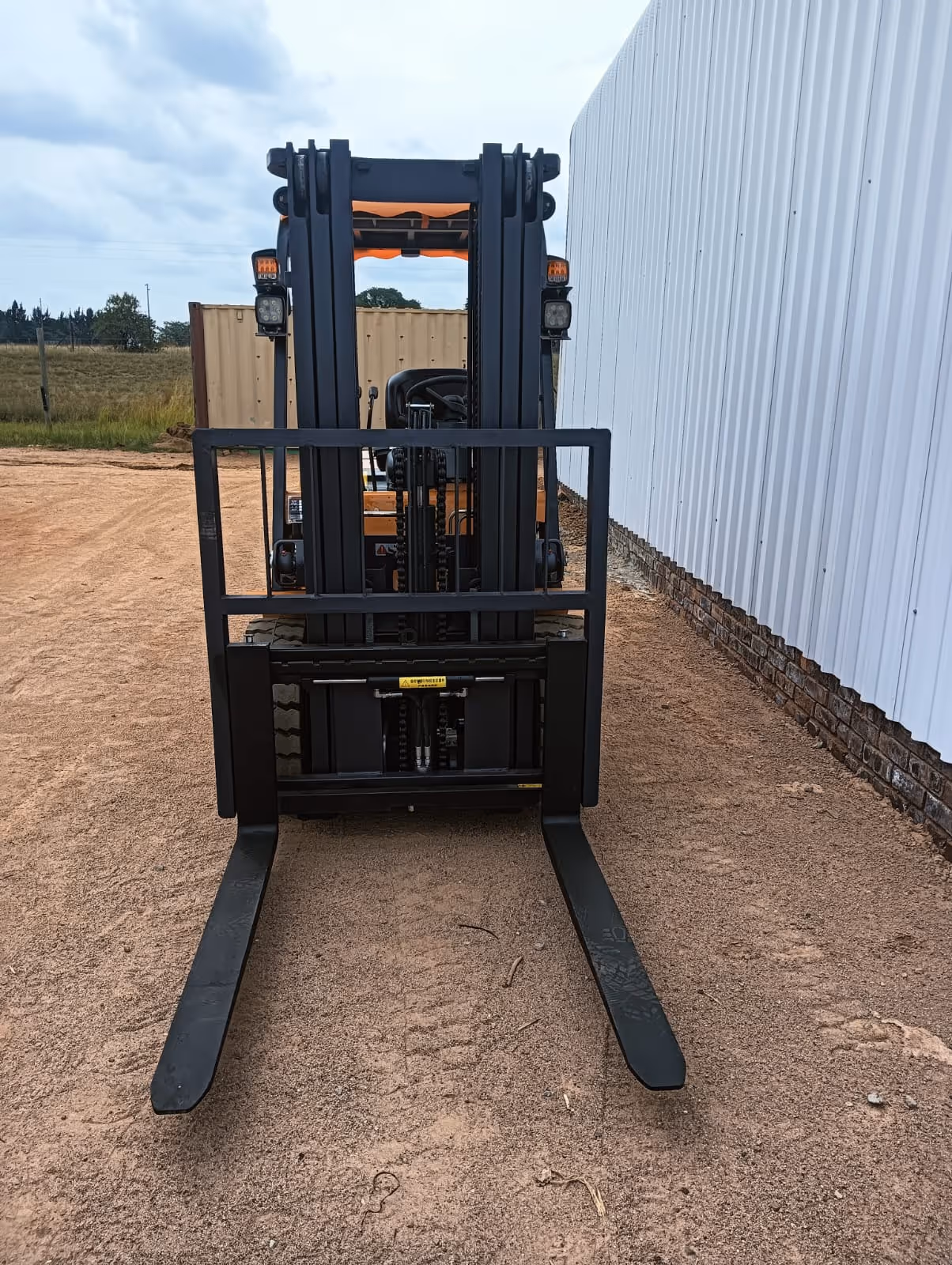

Fork Size L*W*T
1200x125x45mm
Free Outside Spread (Min/Max)
255/1100mm
Mast Tilt Range
6/12°
Front Overhang
500mm
Length to Face of Fork
2 775mm
Wheel Width
1 210mm
Mast Lowered Height
2 080mm
Mast Extended Height
5 610mm
Overhead Guard Height
2 150mm
Turning Radius
2 510mm
Min Right Angle Aisle Width
2 200mm
Performance
Travel Speed - Unload
20 km/h
Travel Speed - Full Load
18.5 km/h
Lift Speed - Unload
510mm
Lift Speed Full Load
450mm
Max Gradeability
20%
Battery
12V/90ah
Wheel & Tyres
Front Tyre Size
28x9-15-12PR
Rear Tyre Size
6.50-10-10PR
Front Tread
1000mm
Rear Tread
980mm
Wheel Base
1 650mm
Min Ground Clearance - Mast Unload
160mm
Min Ground Clearance - Mast Full Load
140mm
Min Ground Clearance - Frame Unload
145mm
Min Ground Clearance - Frame Full Load
125mm

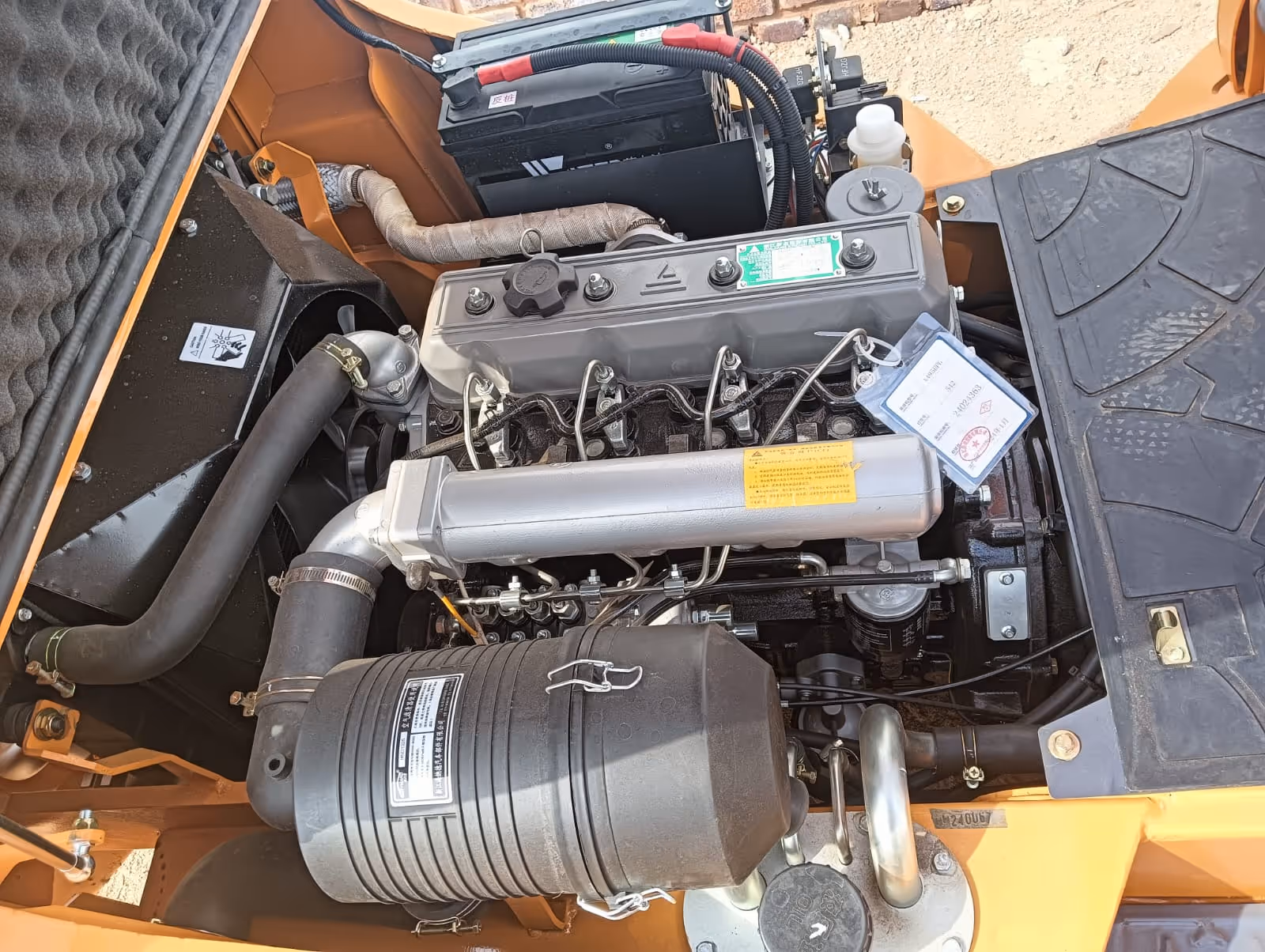

Engine
Model
A495BG-500
Rated Power
37kW
Rated Speed
2400rpm
Transmission
Type
Hydraulic
General
Rated Load
3.5 Ton
Load Centre
500mm
Power Type
Diesel
Machine Weight
4800kg
