ATF25

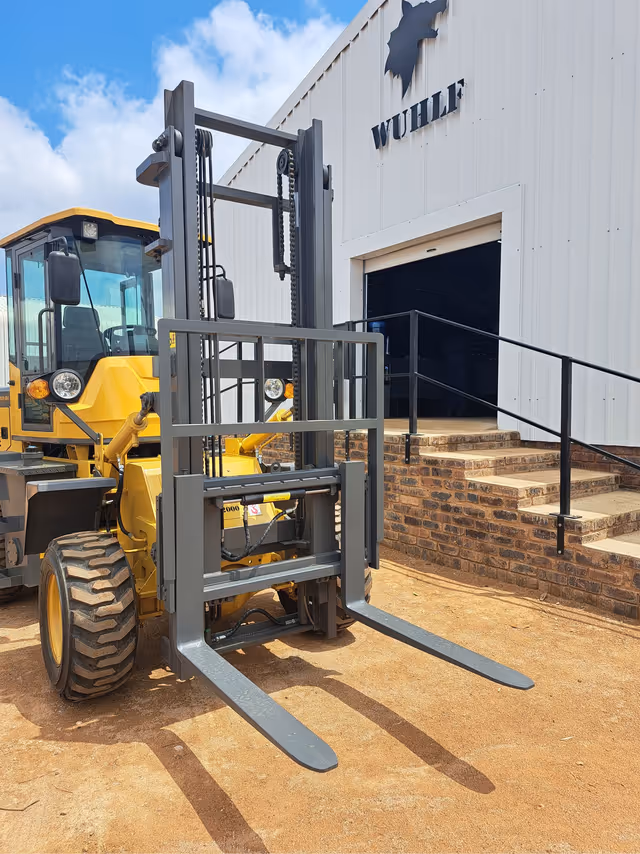

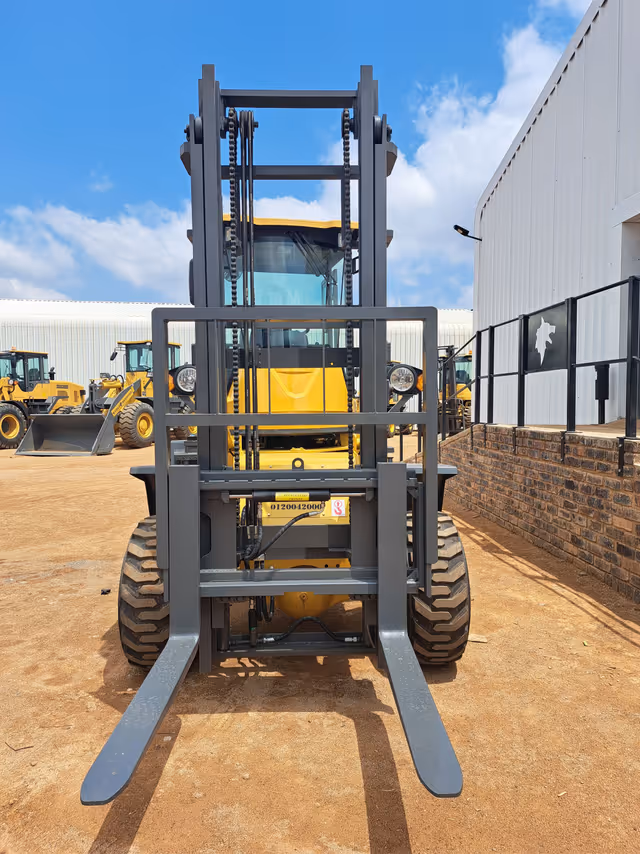

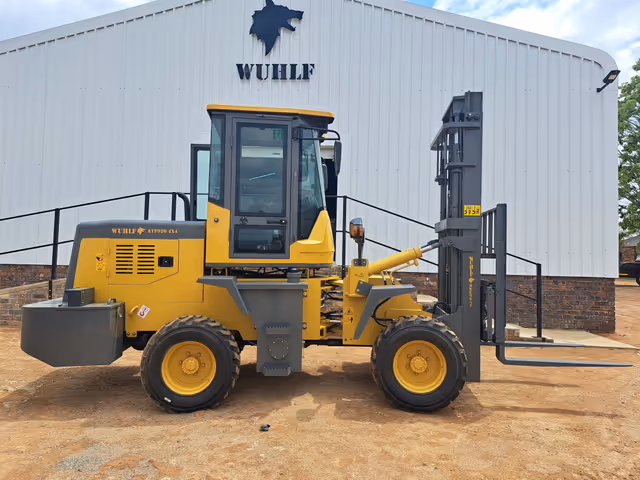

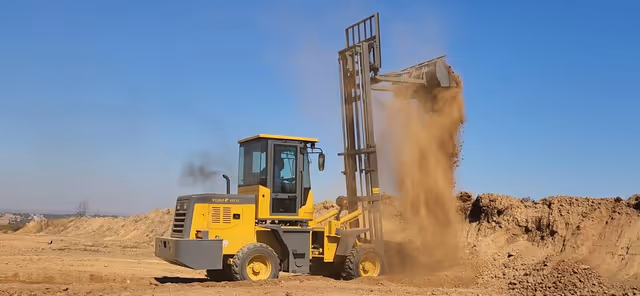

Meerkat All Terrain 2.5 Ton Off-Road 4x4 Forklift

Dimensions
Overall Length
5 380mm
Overall Width
1 800mm
Overall Height
2 700mm
Without Forks
4 310mm
Min Ground Clearance
240mm
Max Lift Height
4 000mm
Wheel Base
2 120mm
Specifications
Rated Load Capacity
2.5 Ton
Mast Tilt Angle
12/6°

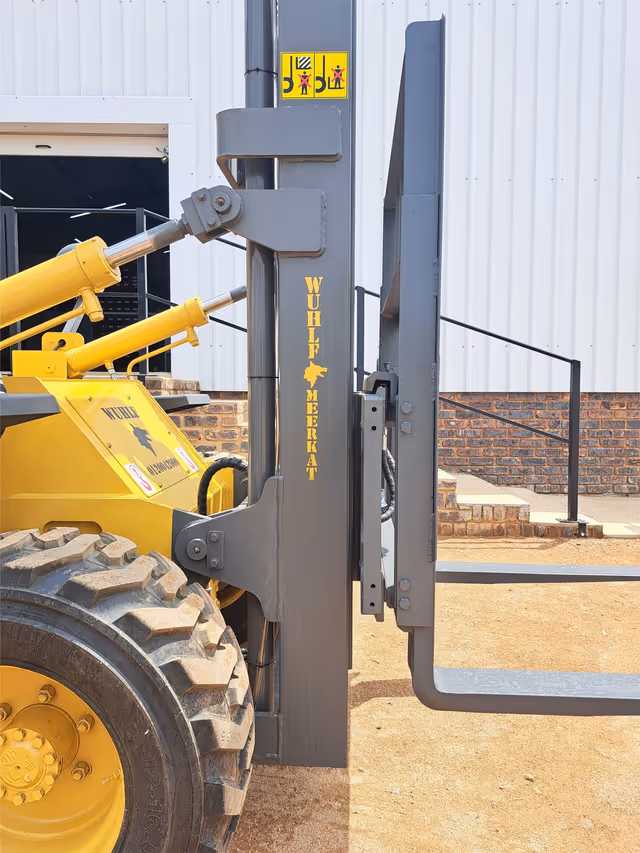

Side Shift
200mm
Max Traction Force
18kn
Max Climbing Gradient
20°
Min Turn Radius
3 780mm
Operating Weight
4 700kg
Fork Length
1 070mm
Traveling Speed
Low Gear
0 - 6 km/h
High Gear
0 - 23 km/h
Reverse Low
0 - 6 km/h
Reverse High
0 - 23 km/h

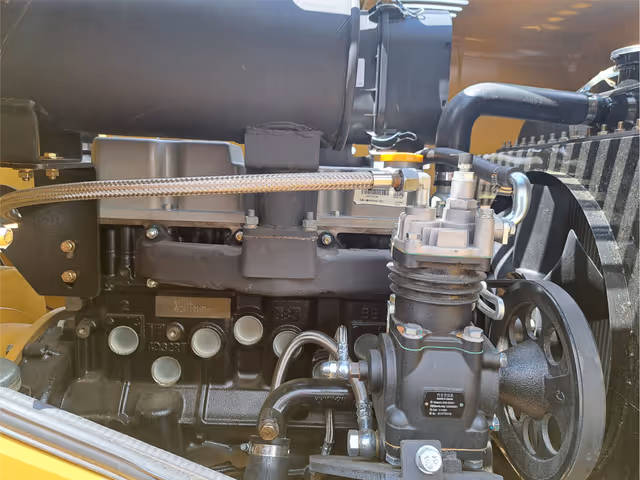

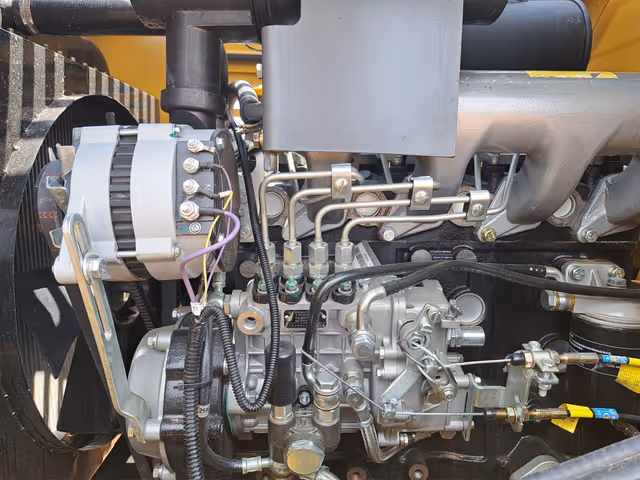

Engine
Rated Power
37kW
Rated Speed
2 400rpm
Model
A495BG-500
Tyres

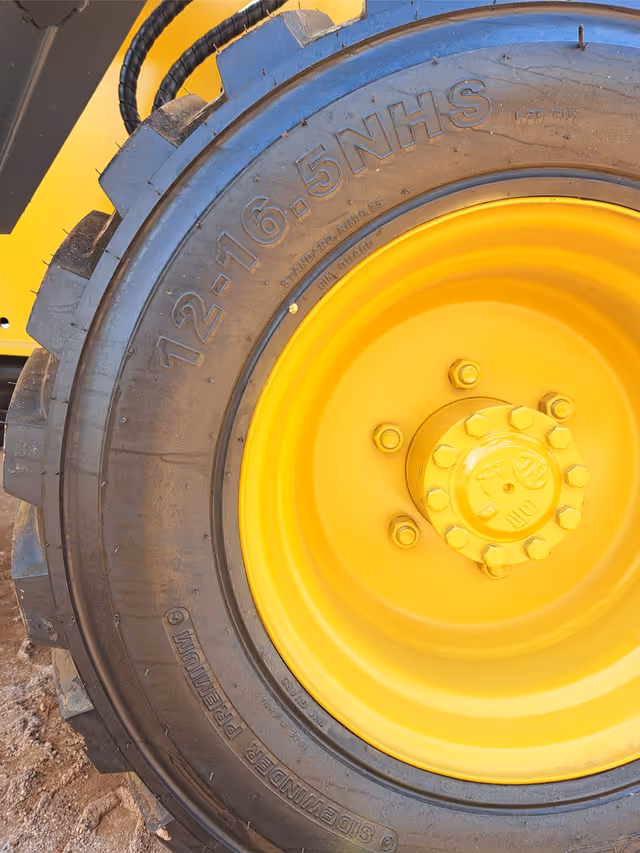

Standard Tyre Size
12-16.5
Front Pressue
0.343mpa
Rear Pressure
0.29mpa
Tank Capacities
Fuel Tank
70 L
Hydraulic Oil Tank
55 L
Engine Oil
12 L
Gear Box
10 L
Axle and Final Reducer
5 L
Brake System
4 L
Transmission
Type
Torque Converter
Articulation
Type
Full Hydraulic Articulated Frame Steering
Steering Angle
35°
Working Hydraulics
System Type
Open Mode Controlling
Working System Pressure
16mpa
